NLX12sp
Item No. 1002622
Loading

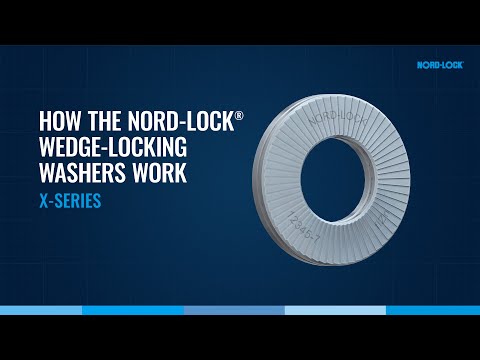

The Nord-Lock X-Series washers with enlarged outer diameter (SP) combine Nord-Lock wedge-locking with an innovative spring effect, offering the highest security against spontaneous bolt loosening and slackening. This product is the optimum choice when you have both vibrations and applications with
Est. 3-5 business days
pairs
Description
The Nord-Lock X-Series washers with enlarged outer diameter (SP) combine Nord-Lock wedge-locking with an innovative spring effect, offering the highest security against spontaneous bolt loosening and slackening.
This product is the optimum choice when you have both vibrations and applications with risk of slackening such as short clamp length, multiple clamped parts, gaskets, soft metals, plastic composites, coatings and thermal cycling.
Nord-Lock X-Series washers have been rigorously tested and approved by independent institutes as well as certification authorities.
Advantages
SP Washers
Nord-Lock washers are available in two outer diameters — standard and enlarged. Washers with an enlarged outer diameter (SP washers) are designed to be used together with flanged bolts and nuts (ISO 4161,4162) on oversized and slotted holes, or on sensitive surfaces and soft materials.
This product is the optimum choice when you have both vibrations and applications with risk of slackening such as short clamp length, multiple clamped parts, gaskets, soft metals, plastic composites, coatings and thermal cycling.
Nord-Lock X-Series washers have been rigorously tested and approved by independent institutes as well as certification authorities.
Advantages
- Prevents bolt loosening caused by vibration and dynamic loads
- Compensates for loss of preload due to settlement and relaxation
- Accurate preload with defined and uniform friction
- Reusable, depending on conditions of use
- Quick and easy assembly and disassembly
- Increases operational reliability while reducing the risk of unplanned production stops, accidents, and warranty claims
- High corrosion resistance, tested minimum 1,000 hours in the Neutral Salt Spray Test
- One solution to cover multiple design challenges
SP Washers
Nord-Lock washers are available in two outer diameters — standard and enlarged. Washers with an enlarged outer diameter (SP washers) are designed to be used together with flanged bolts and nuts (ISO 4161,4162) on oversized and slotted holes, or on sensitive surfaces and soft materials.
Specifications
- Metric Bolt Size
- M12
- Metric Inner Diameter (d)
- 12.5
- Metric Outer Diameter (D)
- 25.4
- Metric Thickness (T)
- 4.2
- Applications
- General steel applications
- Material Standard
- EN 1.7225 or equivalent
- Hardening
- Through hardened
- Hardness Info
- In order to assure the unique mechanical locking function of the Nord-Lock washers, the hardness of the mating surfaces must be lower than the hardness of the Nord-Lock washers.
- Coating
- Base coat: Delta Protekt® KL100 zinc flake; Top coat: VH302GZ
- Corrosion Resistance
- Minimum 1,000 hours in salt spray test, according to ISO 9227
- Temperature Range
- -40°C to 150°C
- Temperature Range Info
- Temperature recommendations are based on information from the raw material supplier and testing. The locking function is not affected within the specified range.
- Bolt Grades
- 8.8 and 10.9
- Laser Marking
- Nord-Lock X, flZn
- Size Range
- M6-M20 / 5/16"-3/4"
- Product Group ID
- NLX-SP
- EAN
- 7330948006530
- Original Article Number
- 2622
